5" Atlas Copco Down The Hole Mission50 M50 DTH Button Drill Bits For Waterwell Drilling

Brand Name : SOLLROC

Model Number : M50 dth bits

Certification : SGS

Place of Origin : China

MOQ : 1 set

Supply Ability : 2000 sets per month

Delivery Time : 3-4 weeks

Packaging Details : Cartons + ply wood case (no plastic)

Product name : M50 dth bits

Color : As your request

Air pressure : 10-15 bar

Applications : water well drilling, mining, etc

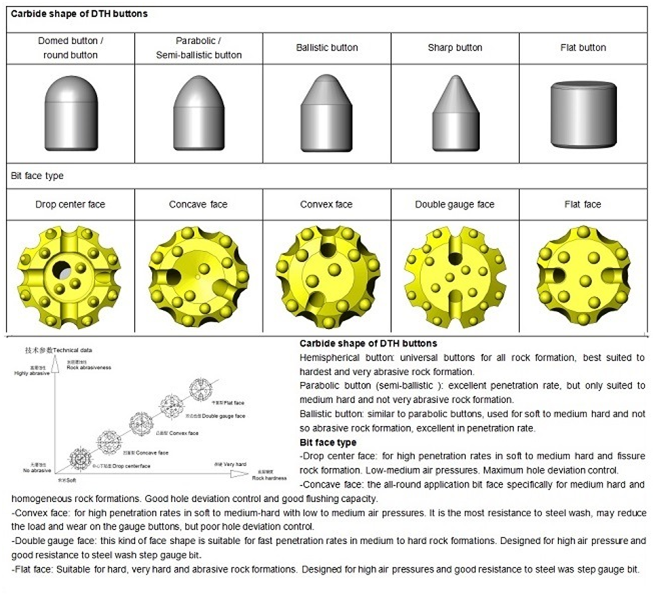

Face shape : Flat, Convex, Concave

Diameter : 5 1/8" 5 1/2" 6" 6 1/4"

Type : without foot valve

Keyword : M50 bit

Contact Now

5" Atlas Copco Down The Hole Mission50 M50 DTH Button Drill Bits For Waterwell Drilling

Product specifications: Mission50 dth bits

For 5" hammer
DTH bits shank
Bit Dia. No.
Air Holes
Gauge
Buttons
Front
Buttons
Weight
(Kg)
Part No.
mm inch
DHD350R/COP54 133 5 1/4" 2 7×φ16 6×φ14 15.0 DHD350-133
140 5 1/2" 2 7×φ18 7×φ14 16.0 DHD350-140
146 5 3/4" 2 8×φ18 7×φ14 17.0 DHD350-146
152 6" 2 8×φ18 8×φ14 17.5 DHD350-152
165 6 1/2" 2 8×φ18 8×φ16 18.5 DHD350-165
SD5 133 5 1/4" 2 7×φ16 6×φ14 15.5 SD5-130
140 5 1/2" 2 7×φ18 7×φ14 16.0 SD5-140
146 5 3/4" 2 8×φ18 7×φ14 16.5 SD5-146
152 6" 2 8×φ18 8×φ14 17.0 SD5-152
165 6 1/2" 2 8×φ18 8×φ16 19.0 SD5-165
QL50 133 5 1/4" 2 7×φ16 6×φ14 15.5 QL50-130
140 5 1/2" 2 7×φ18 7×φ14 16.0 QL50-140
146 5 3/4" 2 8×φ18 7×φ14 16.5 QL50-146
152 6" 2 8×φ18 8×φ14 17.0 QL50-152
165 6 1/2" 2 8×φ18 8×φ16 19.0 QL50-165
Mission50 133 5 1/4" 2 7×φ16 6×φ14 12.5 M50-130
140 5 1/2" 2 7×φ18 7×φ14 13.5 M50-140
146 5 3/4" 2 8×φ18 7×φ14 14.0 M50-146
152 6" 2 8×φ18 8×φ14 14.4 M50-152
165 6 1/2" 2 8×φ18 8×φ16 15.0 M50-165

Hammers
Bit Shank
Connection Thread Suitable bit Working pressure
2" BR2/HD25 RD50 box 70-90mm 7-17.5 bar
3" DHD3.5/COP32/COP34/QL30/M30/
BR3/BR33/XL3/Mach303
API 2 3/8" Reg 90-110mm 10-15 bar
4"
DHD340/COP44/QL40/SD4/M40/
Mach44/TD40(COP44 gold)
API 2 3/8" Reg 110-135mm 10-25 bar
5" DHD350/COP54/QL50/SD5/M50 API 2 3/8" Reg
API 3 1/2" Reg
135-155mm 10-25 bar
6"
DHD360/COP64/QL60/SD6/
M60/TD60 (COP64 gold)
API 3 1/2" Reg 155-190mm 10-25 bar
8" DHD380/COP84/QL80/SD8/M80 API 4 1/2“ Reg 195-254mm 10-25 bar
10" SD10/NUMA100 API 6 5/8" Reg 254-311mm 10-25 bar
12"
DHD1120/NUMA120/NUMA125
API 6 5/8" Reg
305-445mm
10-25 bar

We can also provide related products RC hammers, RC bits, DTH button bits, ODEX, symmetric overburden systems, slide block drilling systems, etc and DTH drilling pipes for various thread API REG, API IF, BECO, etc


Product photos

5" Atlas Copco Down The Hole Mission50 M50 DTH Button Drill Bits For Waterwell Drilling

5" Atlas Copco Down The Hole Mission50 M50 DTH Button Drill Bits For Waterwell Drilling


Available series of DTH hammer:
high pressure DTH hammers
SD series hammer: SD 5, SD 6, SD 8, SD 12.
QL series hammer: QL 30, QL 40, QL 50, QL 60, QL 80.
DHD series hammers: DHD 3.5, DHD 340. DHD 350, DHD 360, DHD380.
Mission series hammers: M30, M40, M50, M60, M80.
Cop series hammers: Cop 32/34, Cop 42/44, Cop 54/64.
NUMA series hammers: Numa100, Numa120, Numa125

Down-the-hole rock tools (drilling tools) are rock drilling equipment which takes compressed air as power source to partially transfer impact power into drilling holes. An air distributing device in a top hammer controls a piston to move back and forth. An impact device arranged in the front of the top hammer transfers the impact powder to a down-the-hole bit to crush rocks.

• Our product range covers the most diverse applications in mining, natural resources exploration, water wells, quarries and civil works.

• Our products go from 3 to 25 inches drilling diameter.

A. Deliver maximum energy to drilling bit, fast drilling speed and low air consumption due to the special inner structure of HD series DTH hammer designed according to newest rock drilling theory.
B. Smooth performance and long service lifeof HD series DTH hammer due to high quality alloy steel materials and advanced processing technology adapted.
C. Low problem rate and easy to maintenancedue to simple, reliable and easy assemble and disassemble inner structure of hammer.
d. Easy to depart bit from hammer due to multi- Head thread connecting chuck and cylinder of hammer.
e. Interchangeable with DTH bit and drill pipe.
