6 1/2" DTH Hammer Bits 165mm DHD360 DTH Bit Rock Drill Bits for Waterwell Drilling
Description: The dth button bits are made of superior quality alloy steel which is made by Timken in U.S. Besides, all our DTH bits are using the brand "Element Six" T.C carbide which provides (the T.C buttons) for Boart Longyear. In addition art manufacturing technology makes our dth button bits with higher and more reliable quality.
Different face style makes DTH bits suitable for various rock conditions.
Flat face: This is an universal design, especially for hard and abrasive rock formation. So typically, flat face with hemi-spherical buttons design is the most popular choice.
Convex face: A classic design for soft to medium hard rock formation which is not so abrasive. This design have very excellent penetration rate but poor in hole deviation if rocks are hard.
Concave face: Medium hard to hard rock formations which is less abrasive and fractured. Especially for deep hole drilling, excellent control over hole deviation.
DGR face: A special design for hard or very hard rock conditions, double gauge row buttons provide very excellent ware-resistance and very longer life time. It is usually used for some bigger diameter DTH bits.
Besides, we are manufacturing the DTH bits with various shanks so they can be compatible with different DTH hammers.
Product specifications: DHD360 DTH bits
| Bit Dia.(mm) | Qty.× Button Dia.(mm) | Qty.Air Holes | Weight (kg) |
| Outer | Front |
| 152 | 8×16 | 4×16+4×14 | 2 | 23.2 |
| 165 | 8×18 | 4×18+5×16 | 2 | 24.0 |
| 172 | 8×18 | 4×18+4×16 | 2 | 25.1 |
| 178 | 9×18 | 5×18+5×16 | 3 | 26.0 |
| 185 | 8×19 | 5×19+5×16 | 2 | 26.5 |
| 190 | 10×18 | 5×16+5×16 | 2 | 29.2 |
| 195 | 10×18 | 5×18+5×16 | 2 | 29.9 |
| 204 | 10×18 | 6×18+7×16 | 2 | 32.4 |
| Bit size | Shank type | Recommended DTH bits diameter |
| 3.5”/3” DTH hammer bits | COP34, DHD3.5, MISSION30, BR3 shank | 90mm~ 105mm |
| 4” DTH hammer bits | DHD340, QL40, MISSION40, SD4 shank | 110mm~ 130mm |
| 5” DTH hammer bits | DHD350, QL50, MISSION50, SD5 shank | 134mm~ 152mm |
| 6” DTH hammer bits | DHD360, QL60, MISSION60, SD6 shank | 152mm~ 203mm |
| 8” DTH hammer bits | DHD380, QL80, MISSION80, SD8 shank | 203mm~ 305mm |
| 12” DTH hammer bits | DHD112, SD12 and QL120 shank. | Available upon to customers’ request |
We can also provide related products DTH hammers, ODEX system, symmetrix systems, slide block drilling systems, etc and DTH drilling pipes for various thread API REG, API IF, BECO, etc
Sollroc , with more 10 years of experience ,is one of the professional manufacturer and supplier of high performance rock drilling tools like: DTH hammers and bits, RC hammers and bits, DTH drill rods and top hammer drilling tools. Our tools are widely used in different drilling applications including mining, quarrying, water well drilling, geotechnical industries and etc.
Sollroc is specialized in designing, manufacturing and developing equipments and accessories for standard models as well as the special needs of clients and provides them with the best suggestions and solutions. We practice strict and stringent quality control during manufacturing and adhered to recognized and approved quality control systems. Each of our products follows the quality requirements and procedures to ensure finished products are durable and superior up to standard

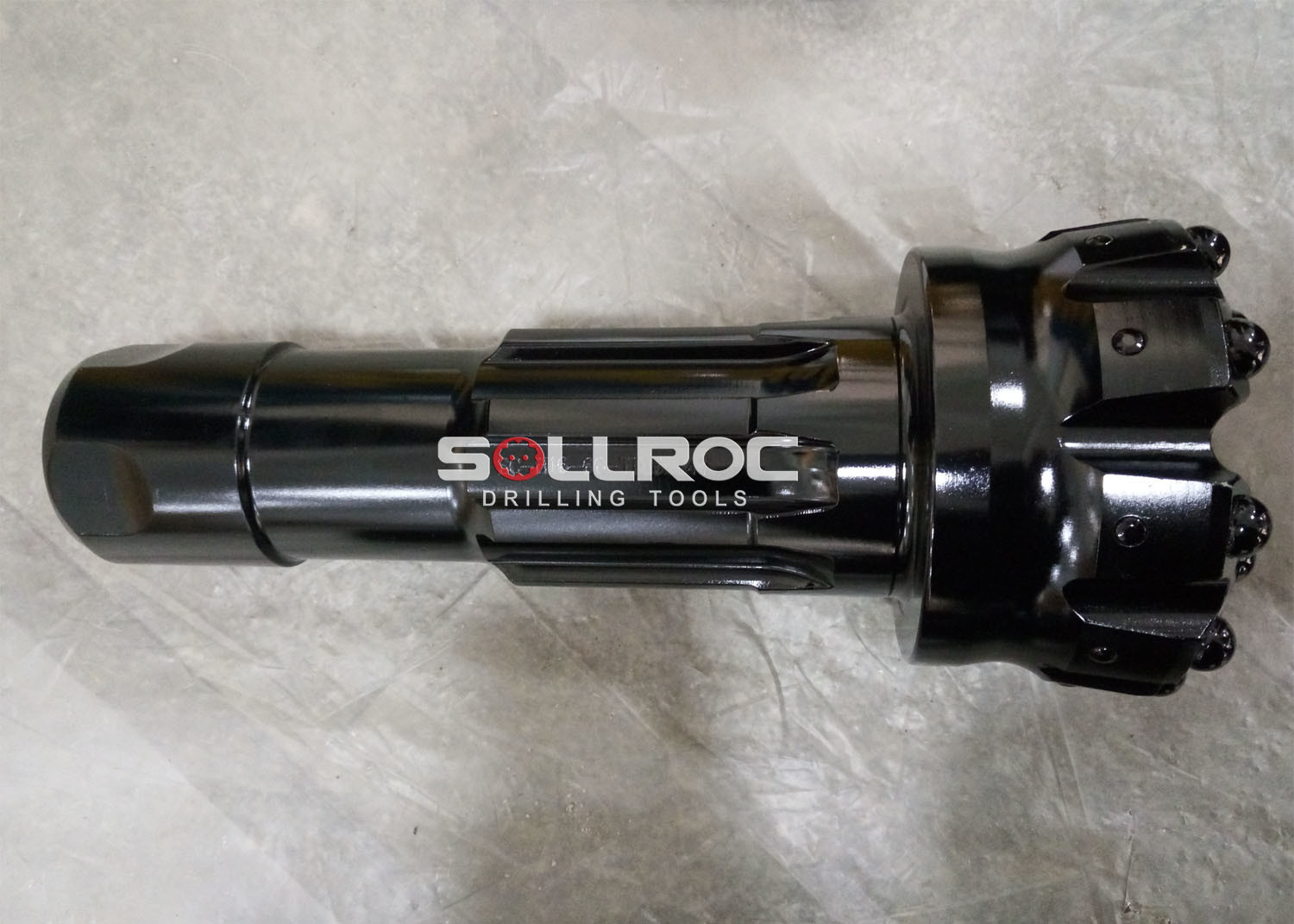

Product photos
