Drill Rod with API Reg Thread 2-3/8" for The DTH Hammer Blast Rock Hole Drilling
Product Introduce
Down the hole drill pipes play a significant role in all DTH drilling, regardless of application, rock type, hole depth or drill rig. The key features of a high quality DTH tube are durability, accuracy and manageability. Sollroc DTH drill pipes are made of superior alloy and the both thread ends are friction welded to the seamless steel pipe. The high pressure air is delivered to DTH hammer by DTH drill pipe, simultaneously it transfers the rotation and press force to the DTH hammer.
Feature
1. Carefully selected seamless steel pipe and high quality alloy steel for joint tools;
2. Special heat treatment process to ensure that the connecting thread has sufficient strength and wear resistance;
3. Multiple precisely heat-treated tools joint.
4. The drill rod body and joint are made of European and American high-quality raw materials to ensure the superiority of normal construction under harsh conditions.
Specification
Diameter: 76mm, 89mm, 102mm, 114mm, 127mm, 140mm,
Length: 1000mm, 1500mm, 2000mm, 3000mm, 5000mm, 6000mm;
Thread: 2 3/8" API REG, 2 7/8" API REG, 3 1/2" API REG, 4 1/2" API REG, 2 3/8" API IF, 3 1/2" API IF
| DTH drill pipes specifications |
| Outer diameter | Thread | Wall thickness
mm | Length
mm |
| mm | inch |
| 76 | 3 | API 2 3/8 REG
API 2 7/8 REG
API 3 1/2 REG
API 4 1/2 REG
API 2 3/8 IF
API 2 7/8 IF
API 3 1/2 IF
API 4 1/2 IF
BECO 3 1/2" | 4.0
6.3 | 1000-6000 |
| 89 | 3 1/2 | 4.0
6.3
8.8 | 1000-6000 |
| 102 | 4 | 6.3
8.8 | 4000-6000 |
| 114 | 4 1/2 | 6.3
12.5 | 4000-9000 |
| 127 | 5 | 6.3
12.5
19 | 4000-9000 |
| 140 | 5 1/2 | 8.8
12.5
19 | 4000-9000 |
We can also supply DTH drill pipe from diameter 76mm to 140mm.

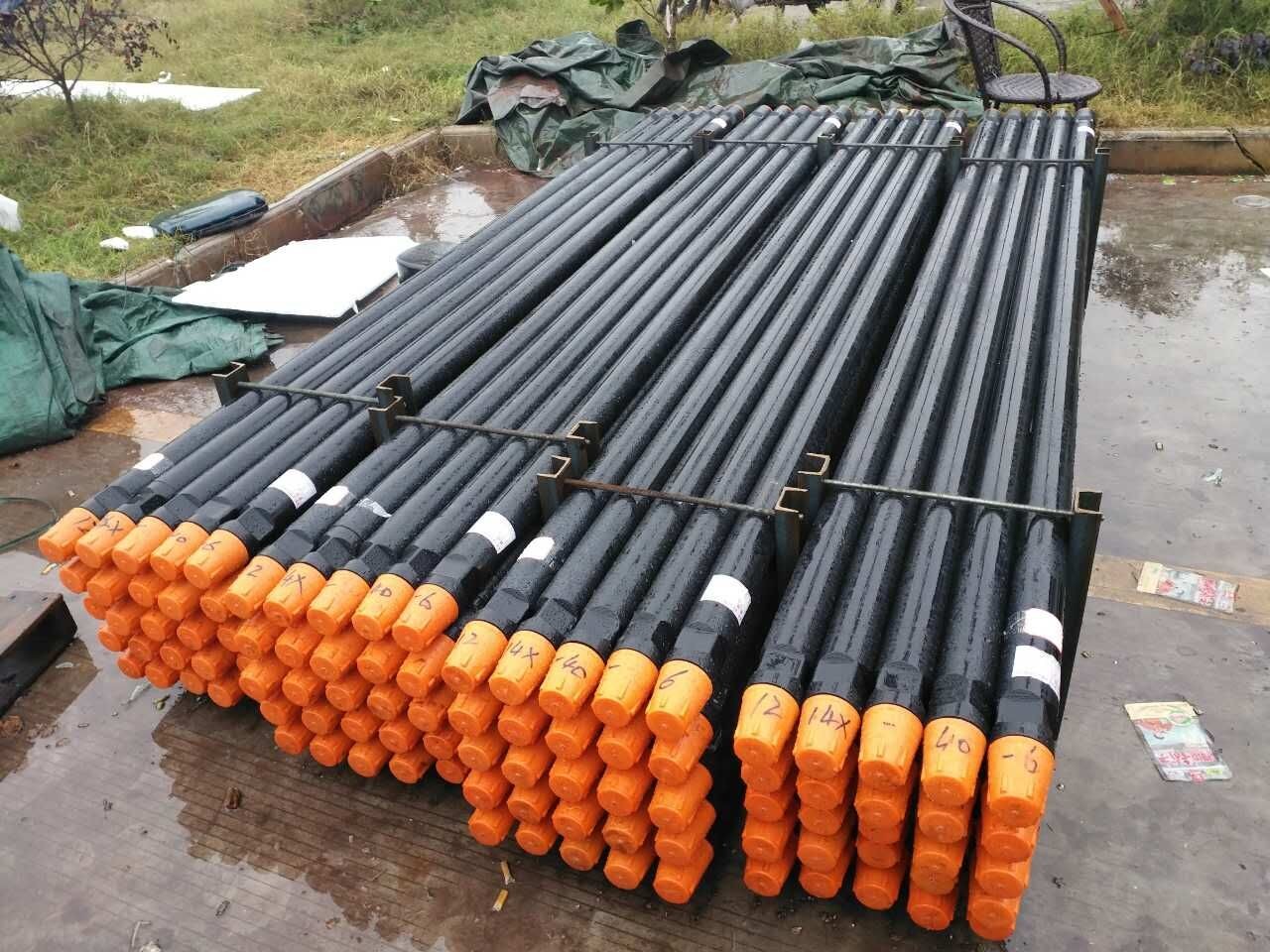

Detailed photo
Delivery Time
Generally need 15-25 days
Transport Way
By air, By Sea or By Express
