86-102mm Reverse Circulation RC Bit With Carbide Buttons For Mining Exploration

Name: 86102mm Reverse Circulation RC Bit With Carbide Buttons For Mining Exploration
Brand: SOLLROC
Price: 1 USD

Brand Name : SOLLROC

Model Number : SRC531 RC bit

Certification : SGS

Place of Origin : China

MOQ : 1 piece

Price : negotiate

Payment Terms : L/C, D/A, D/P, T/T, , MoneyGram

Supply Ability : 5000pcs per month

Delivery Time : 15-22 days

Packaging Details : Cartons + ply wood case (no plastic)

Color : Black or you wanted

Material : High Carbon Steel

Application : Hole Drilling in mines, Hydrology and water well ,Geothermal well

Usage : Geologic exploration,gravel stratu

Formation : Complicated gravel formation

Quality : best

Shank : SRC531

Diameter : 95mm

Contact Now

86-102mm Reverse Circulation RC Bit with Carbide Buttons for Mining Exploration

Product Introduce:

Reverse Circulation drilling, or RC drilling, is a method of drilling which uses dual wall drill rods that consist of an outer drill rod with an inner tube. These hollow inner tubes allow the drill cuttings to be transported back to the surface in a continuous, steady flow.

Adavantages:

1. Achieves greater penetration in hard rock than air core drilling,

2. Ideal for harsh environments.

3. Reduced risk of cross-contamination.

4. Faster and more efficient

Technical Parameters

RC bits Model SRC531

Diameter		No. x Button diameter mm		Button angle	Flushing holes	Shroud Dia mm	Weight (kg)	Part No.
mm	inch	Gauge Button	Front Button	Button angle	Flushing holes	Shroud Dia mm	Weight (kg)	Part No.
86	3 3/8	6 x 12mm	5 x 12mm	35	2	84	6.0	SRC531-86
89	3 1/2	8 x 12mm	5 x 12mm	35	2	87	6.1	SRC531-89
95	3 3/4	8 x 12mm	6 x 12mm	35	2	93	6.3	SRC531-95
102	4	8 x 12mm	6 x 12mm	35	2	100	6.5	SRC531-102

RC hammers

Hammer	Bit Shank	Hole Range (mm)	External Diameter (mm)	Length (less bit) mm	Weight (kg)	Connection Thread	Working Pressure
RC3-E531	RE531	84-100	81	1069	29	3" Remet	1.5-3.5Mpa
RC3.5-Y	RC3.5Y	98-115	94	1184	44	3" Remet	1.5-3.5Mpa
RC4-E004	RE004	111-127	107	1252	52	3.5" / 4" Remet 4" Metzke	1.5-3.5Mpa
RC4.5-E542	RE542	113-130	109.5	1191	57	3.5" / 4" Remet 4" Metzke	1.5-3.5Mpa
RC4.5-E543	RE543	120-135	116	1191	63	3.5" / 4" Remet 4" Metzke	1.5-3.5Mpa
RC4.5-E545	RE545	122-135	117.5	1261	65	4" / 4.5" Remet 4" / 4.5" Metzke	1.5-3.5Mpa
RC5-P40	PR40(RE040)	124-142	120.5	1362	80.5	3.5" / 4.5"Remet 3.5" / 4.5"Metzke	1.5-3.5Mpa
RC5.5-P52/P52R	PR52/PR52R	126-142	121	1227	68.5	4" / 4.5"Remet 4" / 4.5"Metzke	1.5-3.5Mpa
RC5.5-E547	RE547	130-146	124.5	1270	74	4.5" Remet 4.5" Metzke	1.5-3.5Mpa
RC5.5-P54/P54R	PR54(RE054)	135-150	130	1294	84.5	4.5"Remet 4.5"Metzke	1.5-3.5Mpa
RC5.5-M5456	MX5456	136-150	132	1362	90	4.5"Remet 4.5"Metzke	1.5-3.5Mpa

Working principle

During drilling, compressed air is injected into the annulus of the dual-wall pipes and drives the RC-DTH hammer to implement high-frequency blows acting on a reverse circulation drill bit where the reverse circulation is formed.

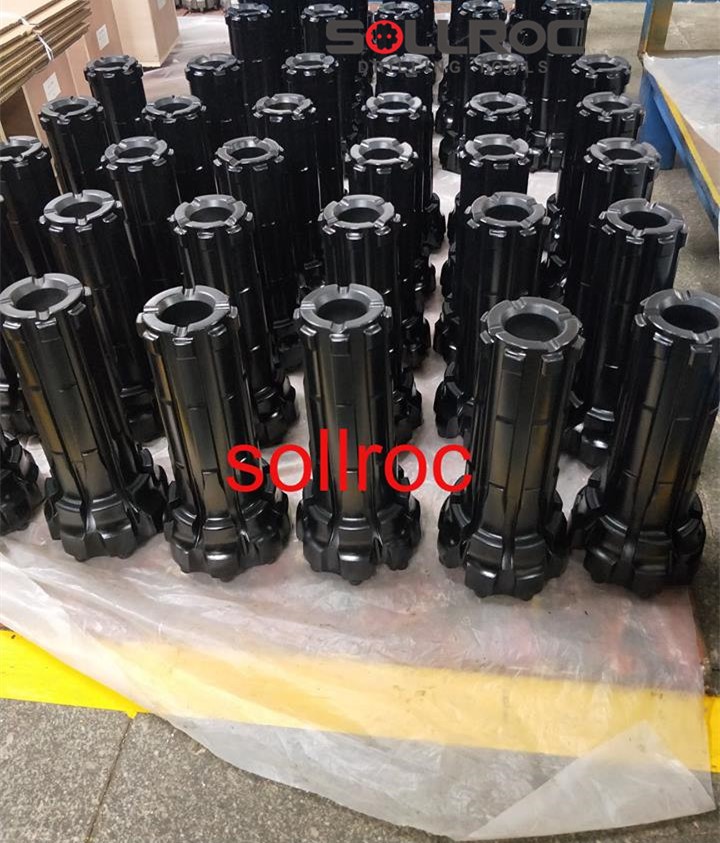

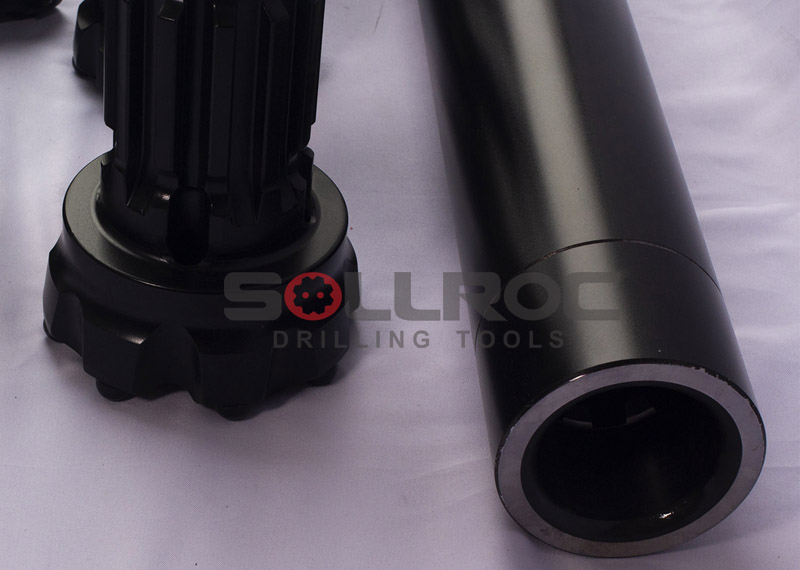

Detailed Photo:

86-102mm Reverse Circulation RC Bit With Carbide Buttons For Mining Exploration

Delivery Way:

By Air, By express or By Sea
