Full Size Water Well Drilling Hammer Black Color With Shank SD Series

Name: Full Size Water Well Drilling Hammer Black Color With Shank SD Series
Brand: SOLLROC
Price: 1 USD

China Full Size Water Well Drilling Hammer Black Color With Shank SD Series wholesale

Brand Name : SOLLROC

Model Number : SD Series Hammer

Certification : SGS

Place of Origin : China

MOQ : 1 piece

Price : negotiable

Payment Terms : T/T,

Supply Ability : 10000 pieces/month

Delivery Time : 18 working days

Packaging Details : Cartons + ply wood case (no plastic)

Application : Quarrying, construction

Usage : geothermal drilling

Product name : SD series hammer

Rock formation : Granite, limestone, quartz, etc

Advantage : Best quality

Color : Black or as request

Rock hardness : Granite, limestone, quartz, etc

Use : Well Drilling,Ore Mining,Coal Mining,Coal/Ore Mining,quarry

Size : full

Air pressure : High

Transport Package : Cartons + Ply-Wooden Cases for Exporting

Quantity : Small Quantity Is Acceptable

Contact Now

Full Size Black Color Water Well Drilling Hammer with Shank SD Series

Product description:

A down-the-hole hammer (DTH hammer) is a tool that can be attached to the end of a drill string and inserted into a bore. It's a small jack hammer used to break hard rock into small particles that can be flushed away by the DTH hammer's air exhaust.

The DTH system, generates clean, truly aligned boreholes at high drilling rates with little operational cost, can drill small diameter holes and deep holes.

Product Advantages:
1. Service and Maintenance are simple.
2. Extensive chip drilling allows for faster drilling with less dust.
3. Hole alignment is improved by using a rigid drill string.
4. The air flowing through the hole ensures efficient flushing and cleaner holes. With the same hammer, you may make a variety of hole diameters.

DTH Hammer specification:

SD series hammer specification

	SD4	SD5	SD6	SD8	SD10	SD12
Length(less bit)	1084mm	1175mm	1261mm	1463mm	1502mm	1880mm
Weight (less bit)	40.5kg	72.5kg	100.0kg	192.0kg	290.0kg	487.0kg
External diameter	99mm	125mm	142mm	180mm	225mm	275mm
Bits shank	SD4	SD5	SD6	SD8	SD10	SD12
Bits diameter	105-135mm 4 1/8" - 5 1/8"	130-156mm 5 1/8" - 6 1/8"	152-203mm 6" - 8"	200-279mm 7 7/8" - 11"	254-330mm 10" - 13"	305-381mm 12" - 15"
Connection thread	API 2 3/8" Reg	API 3 1/2" Reg	API 3 1/2" Reg	API 4 1/2" Reg	API 4 1/2" Reg API 5 1/2" Reg	API 6 5/8" Reg
Air pressure	1.0-2.5 Map	1.0-25.Mpa	1.0-2.5Mpa	1.0-2.5Mpa	1.0-2.5Mpa	1.0-2.5Mpa

Bit shank selection:
Full Size Water Well Drilling Hammer Black Color With Shank SD Series

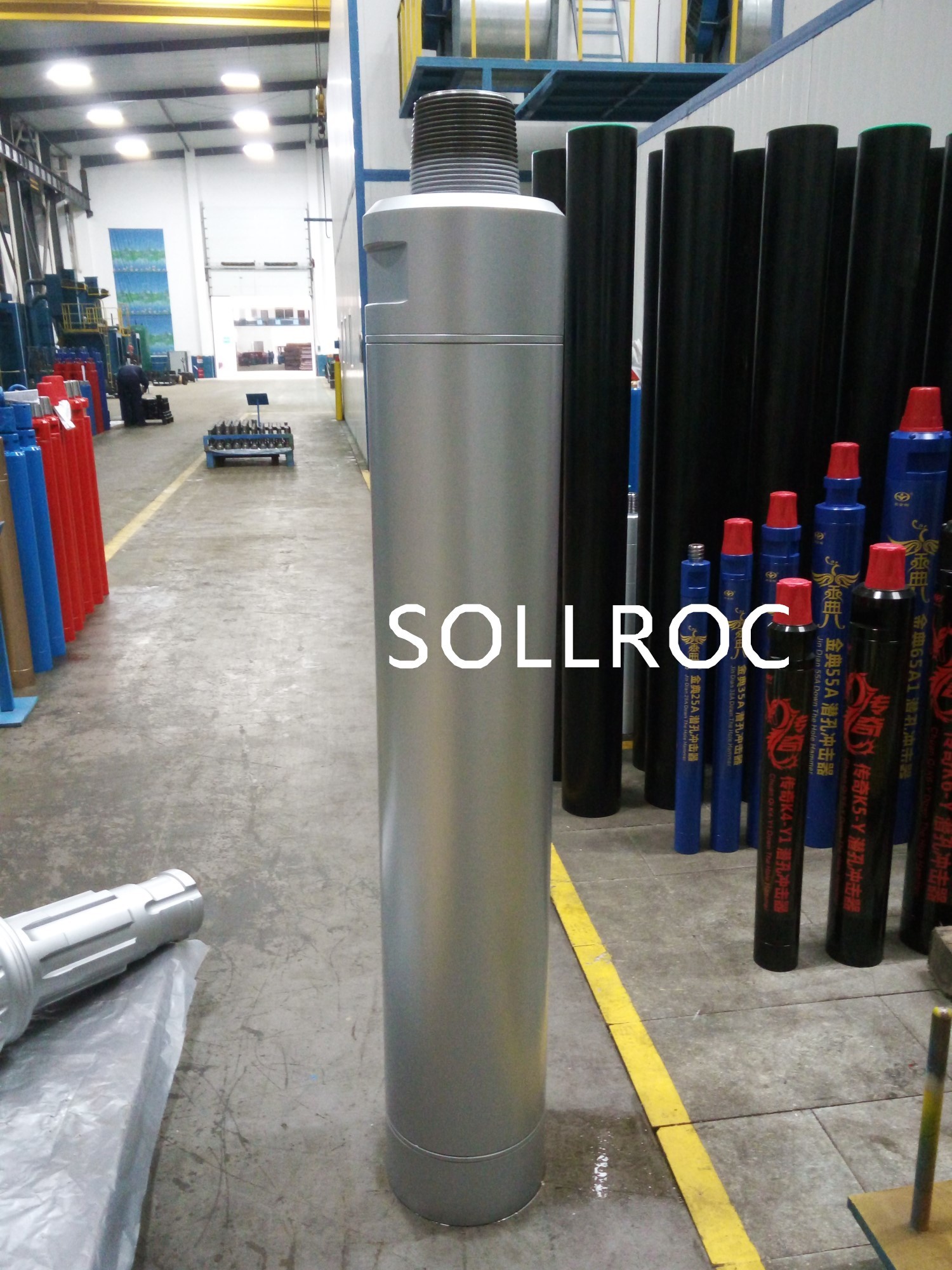

Detailed photos:

Full Size Water Well Drilling Hammer Black Color With Shank SD Series

Application:
