143mm PR54R RC Button Bit Black Color With Carbide Buttons For Grade Control

Name: 143mm PR54R RC Button Bit Black Color With Carbide Buttons For Grade Control
Brand: SOLLROC
Price: 1 USD

Brand Name : SOLLROC

Model Number : PR54 Bit

Certification : SGS

Place of Origin : China

MOQ : 1 piece

Price : negotiate

Payment Terms : L/C, D/A, D/P, T/T, , MoneyGram

Supply Ability : 5000pcs per month

Delivery Time : 15-22 days

Packaging Details : Cartons + ply wood case (no plastic)

Color : Black or you wanted

Material : Alloy Steel

Application : Hole Drilling in mines, Hydrology and water well ,Geothermal well

Usage : Geologic exploration,gravel stratu

Formation : Complicated gravel formation

Quality : best

Name : PR54 RC bit

Manufacturing Process : Forging

Port : Shanghai/Guangzhou/ Beijing

Contact Now

143mm PR54R RC Button Bit with Carbide Buttons and Black Color for Grade Control

Product Introduce:

Reverse Circulation (RC) drilling is one of the three main types of mineral exploration techniques. Used to compile sample rock cuttings, the drilling process relies on hollow inner tubes to transport samples back to the surface in a continuous flow, using compressed air

Basically in a Reverse Circulation Drilling Program, the drill hammer breaks up the rock as the hole is drilled. This produces gravel size rock chips, clay to sand sized sediments. The rock chips are brought to the surface by compressed air.

Adavantages:

1. Direct drilling cost reductions in the range of 25% to 40%.
2. Faster completion of drill programs with quicker delivery of results.
3. Reduced man-hours at the drill with decreased exposure to potential accidents.
4. Reduced contractor activity in the mine reduces mine support burden.

5. Achieves greater penetration in hard rock than air core drilling,
6. Ideal for harsh environments.

Specification:

RC bits Model RC5.5-P54/P54R for shank PR54/PR54R

Diameter		No x Button diameter mm		Button angle	Flushing holes	Shroud Dia mm	Weight (kg)	Part No
mm	inch	Gauge Buttons	Front Buttons	Button angle	Flushing holes	Shroud Dia mm	Weight (kg)	Part No
136	5 3/8	8 x 16mm	6x16+3x14	35	2	134	19.0	RC5.5-P54-136
140	5 1/2	8 x 16mm	6x16+3x14	35	2	138	19.3	RC5.5-P54-140
143	5 5/8	8 x 16mm	6x16+3x14	35	2	141	19.5	RC5.5-P54-143
146	5 3/4	8 x 16mm	6x16+3x14	35	2	144	19.6	RC5.5-P54-146

PR54 RC hammer specification

Length (less bit)	1294mm
Weight (less bit)	84.5kg
External diamater	φ130mm
Hole range	φ135-φ150
Connection thread	4.5" Remet 4.5" Metzke
Working pressure	1.5Mpa-3.5Mpa
Air consumption	1.7 Mpa	16 m³/min
	2.4 Mpa	22 m³/min
	3.0 Mpa	28 m³/min

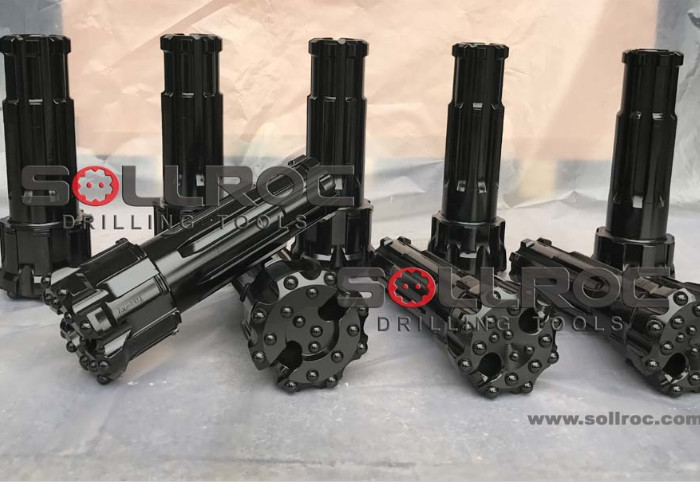

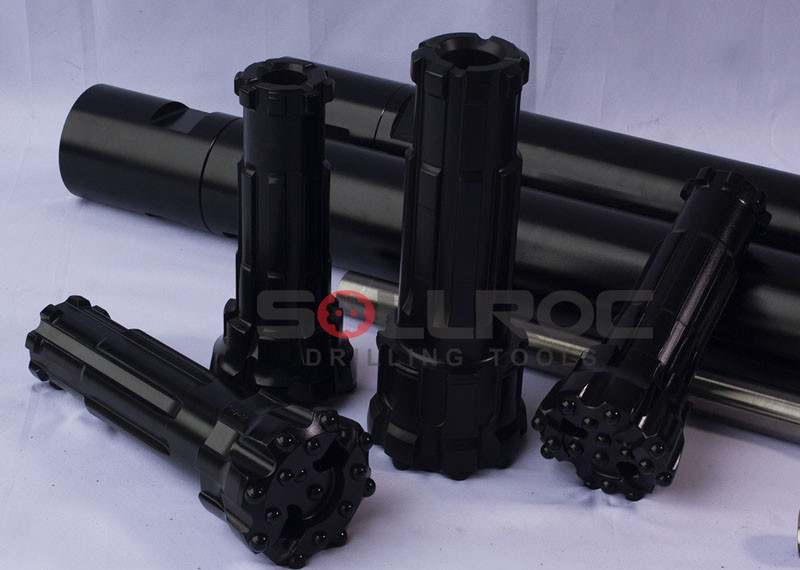

Detailed Photo:

143mm PR54R RC Button Bit Black Color With Carbide Buttons For Grade Control

About us:

SOLLROC Reverse Circulation drilling (RC) ,from size 3’’ to 5.5’’, is a technique of drilling that uses dual wall drill rods that consist of an outer drill rod with an inner tube. By using compressed air to extract rock fragments sample,the samples travel through rods to a sample splitter at surface, avoiding all contact between the samples and the borehole wall that allows samples to be retrieved with minimal contamination,which is mainly used in deep hole exploration and mining grade control.

Delivery Way:

By Air, By express or By Sea
