SRC531 105mm Reverse Circulation Bits With Drop Center Face

Name: SRC531 105mm Reverse Circulation Bits With Drop Center Face
Brand: SOLLROC
Price: 1 USD

China SRC531 105mm Reverse Circulation Bits With Drop Center Face wholesale

Brand Name : SOLLROC

Model Number : SRC531 RC bit

Certification : SGS

Place of Origin : China

MOQ : 1 piece

Price : negotiate

Payment Terms : L/C, D/A, D/P, T/T, , MoneyGram

Supply Ability : 5000pcs per month

Delivery Time : 15-22 days

Packaging Details : Cartons + ply wood case (no plastic)

Color : Black or you wanted

Material : High Carbon Steel

Application : Hole Drilling in mines, Hydrology and water well ,Geothermal well

Usage : Hole Drilling In Mines,Hydrology,exploration and gravel stratum

Formation : Complicated gravel formation

Quality : best

Diameter : 4 1/8''

Shrould : 103mm

Contact Now

SRC531 105mm Weight 4.5kgs With Drop Center Face Shape RC Drill Bit For Sampling

Product Introduce:

Reverse circulation or RC drilling is a fast and inexpensive method of drilling, particularly compared to diamond drilling. A hundred meters or more of drilling is possible a day. RC is a commonly used drilling method in the mineral exploration industry.

Specification:

SRC531-105mm bit

Diameter		Buttons * button diameter		Shroud diameter (mm)	weight (kg)
mm	inch	Gauge	Centre	Shroud diameter (mm)	weight (kg)
105	4 1/8''	6*14mm	6*12mm	103	4.5

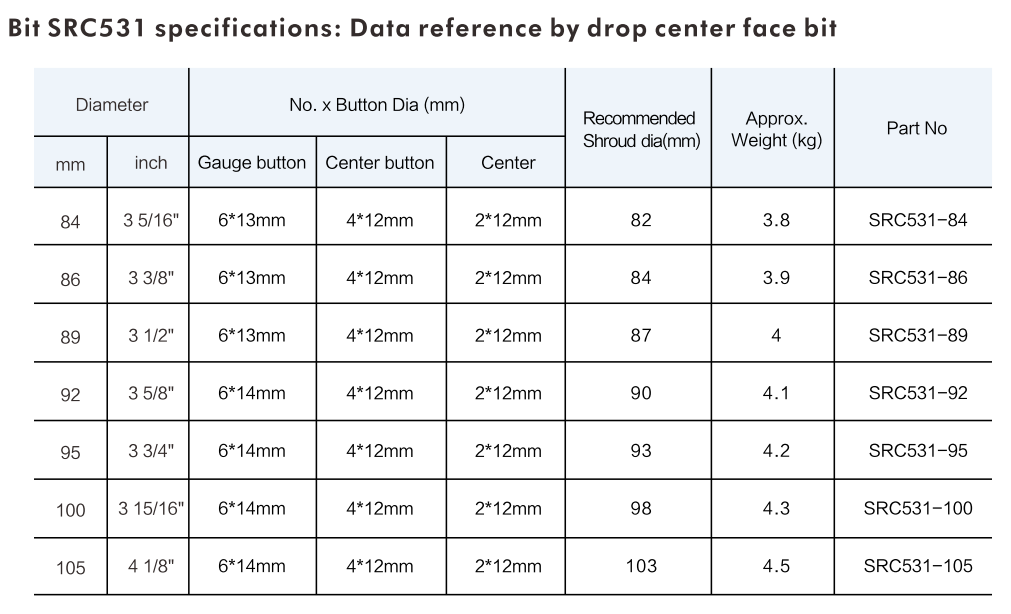

SOLLROC RC BIT model SRC531:

Diameter		Buttons * button diameter		Shroud diameter (mm)	weight (kg)
mm	inch	Gauge	Centre	Shroud diameter (mm)	weight (kg)
84	3 5/16	6*13mm	6*12mm	82	3.8
86	3 3/8	6*13mm	6*12mm	84	3.9
89	3 1/2	6*13mm	6*12mm	87	4
92	3 5/8	6*14mm	6*12mm	90	4.1
95	3 3/4	6*14mm	6*12mm	93	4.2
100	3 15/16	6*14mm	6*12mm	98	4.3
105	4 1/8	6*14mm	6*12mm	103	4.5

Adavantages:

1. Direct drilling cost reductions in the range of 25% to 40%.
2. Faster completion of drill programs with quicker delivery of results.
3. Reduced man-hours at the drill with decreased exposure to potential accidents.
4. Minimizes hole erosion in fragile formations
5. Drills faster through soft formations with less blockages
6. Drills straighter through consolidated and unconsolidated formations

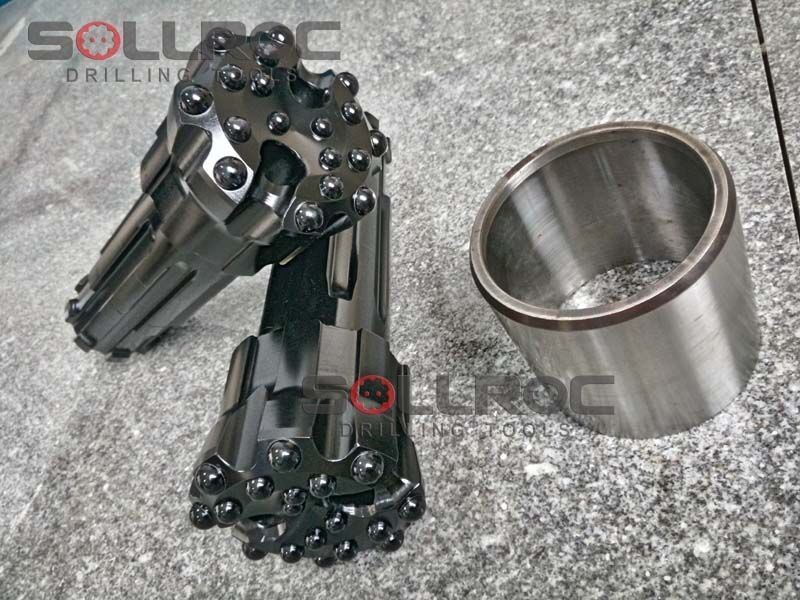

Photo:

SRC531 105mm Reverse Circulation Bits With Drop Center Face

About us:

SOLLROC Reverse Circulation drilling (RC) ,from size 3’’ to 5.5’’, is a technique of drilling that uses dual wall drill rods that consist of an outer drill rod with an inner tube. By using compressed air to extract rock fragments sample,the samples travel through rods to a sample splitter at surface, avoiding all contact between the samples and the borehole wall that allows samples to be retrieved with minimal contamination,which is mainly used in deep hole exploration and mining grade control.

Delivery Way:

By Air, By express or By Sea

Package :

Ply-wooden cases + pallet
